HARDWARE PRODUCTS

Industrial data loggers, built for the panel.

DIN-rail enclosures, isolated field inputs, store-and-forward buffering and a direct line into the Eco portal. Datasheets below.

M0 LAN M0 4G M2 M5 M5 Serial
M0 LAN and M0 4G industrial data logger
M0 LAN & M0 4G
compact · 4 ADC · RS-485
M2 industrial data logger held in hand
M2
all-in-one · 12-way I/O
M5 industrial data logger
M5
edge compute · 4 cores
M5 Serial industrial data logger
M5 Serial
8 serial channels
M0 LAN industrial data logger held in hand
M0 LAN front face and terminal labelling
M0 LAN analog input terminals, A-1 to A-4
M0 LAN power terminals, USB-C and RJ45
COMPACT · ETHERNET

M0 LAN

Small and compact yet powerful. Four analog channels, an RS-485 trunk and a wired uplink, in a housing that fits the palm of your hand and a spare DIN slot.

Analog in
4 × 4-20 mA (A-1 … A-4)
Serial
RS-485 (A+ / B-)
Network
Ethernet · Wi-Fi · USB-C
Power
24 V AC/DC
Download datasheet Ask for a quote
COMPACT · CELLULAR

M0 4G

The same compact body with a cellular modem instead of the RJ45. For remote pumping stations, stacks and substations where there is no network to plug into.

Analog in
4 × 4-20 mA
Serial
RS-485 (A+ / B-)
Network
4G LTE + Wi-Fi
Power
24 V AC/DC
Download datasheet Ask for a quote

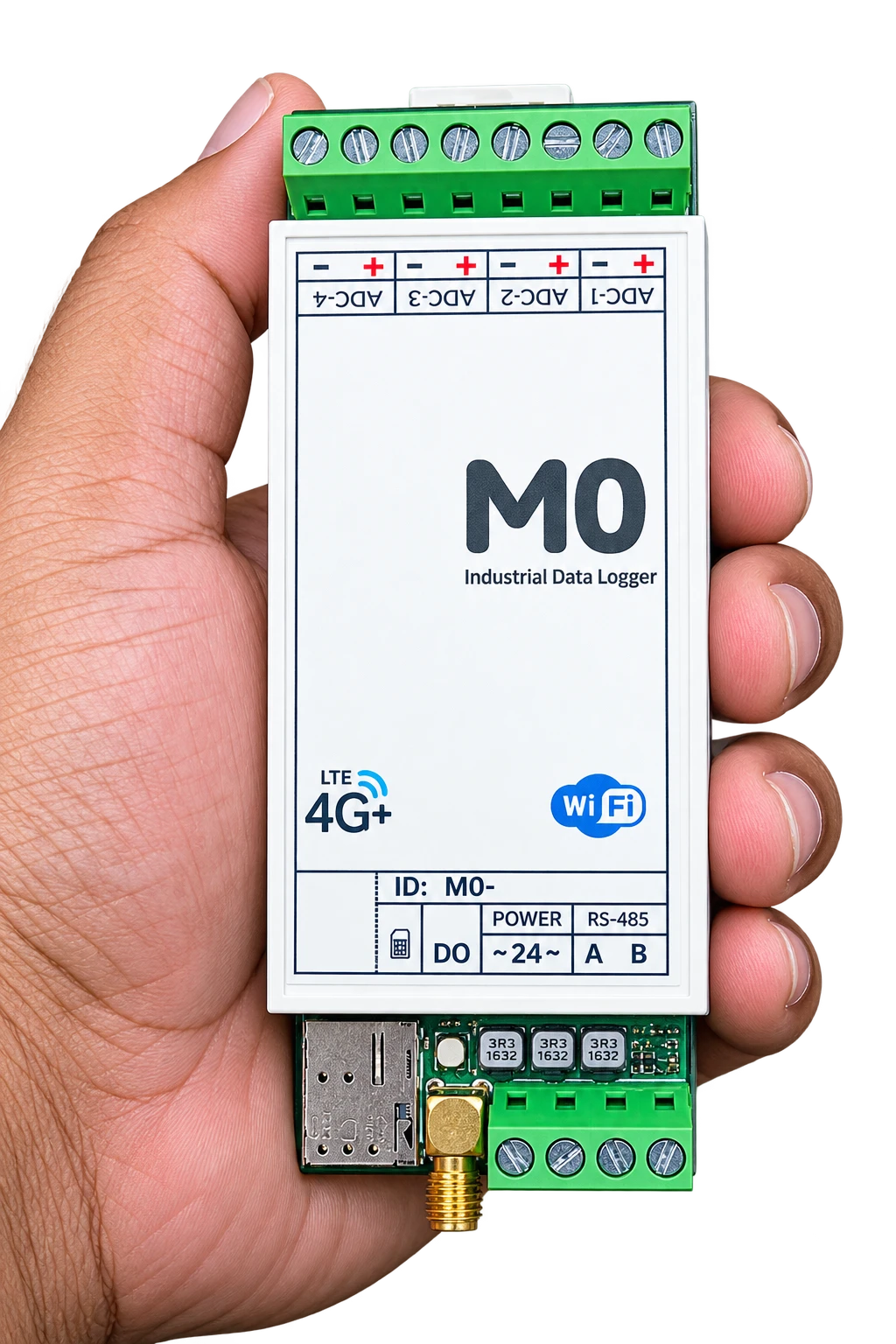

M0 4G industrial data logger held in hand

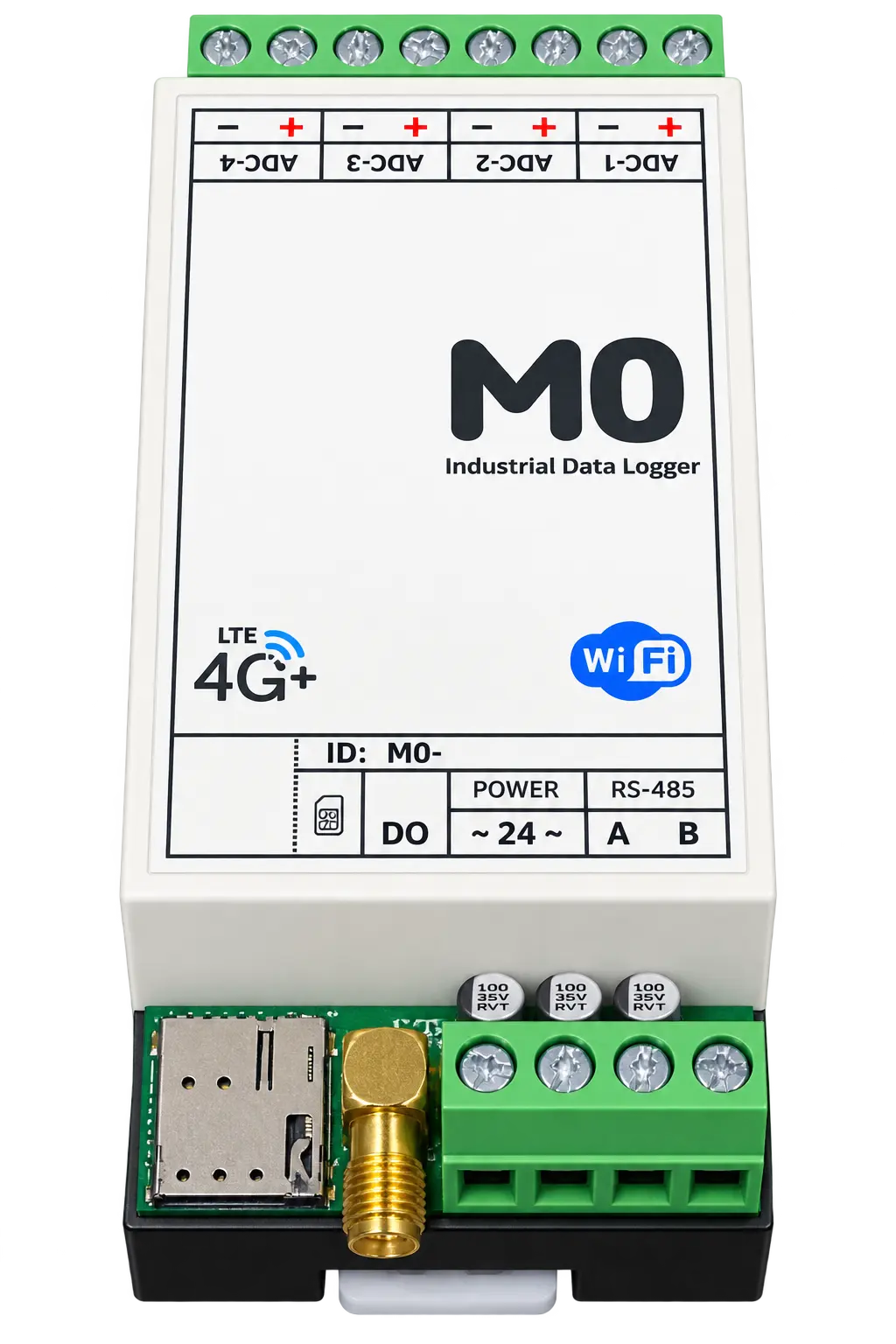

M0 4G housing with SMA antenna connector and SIM slot

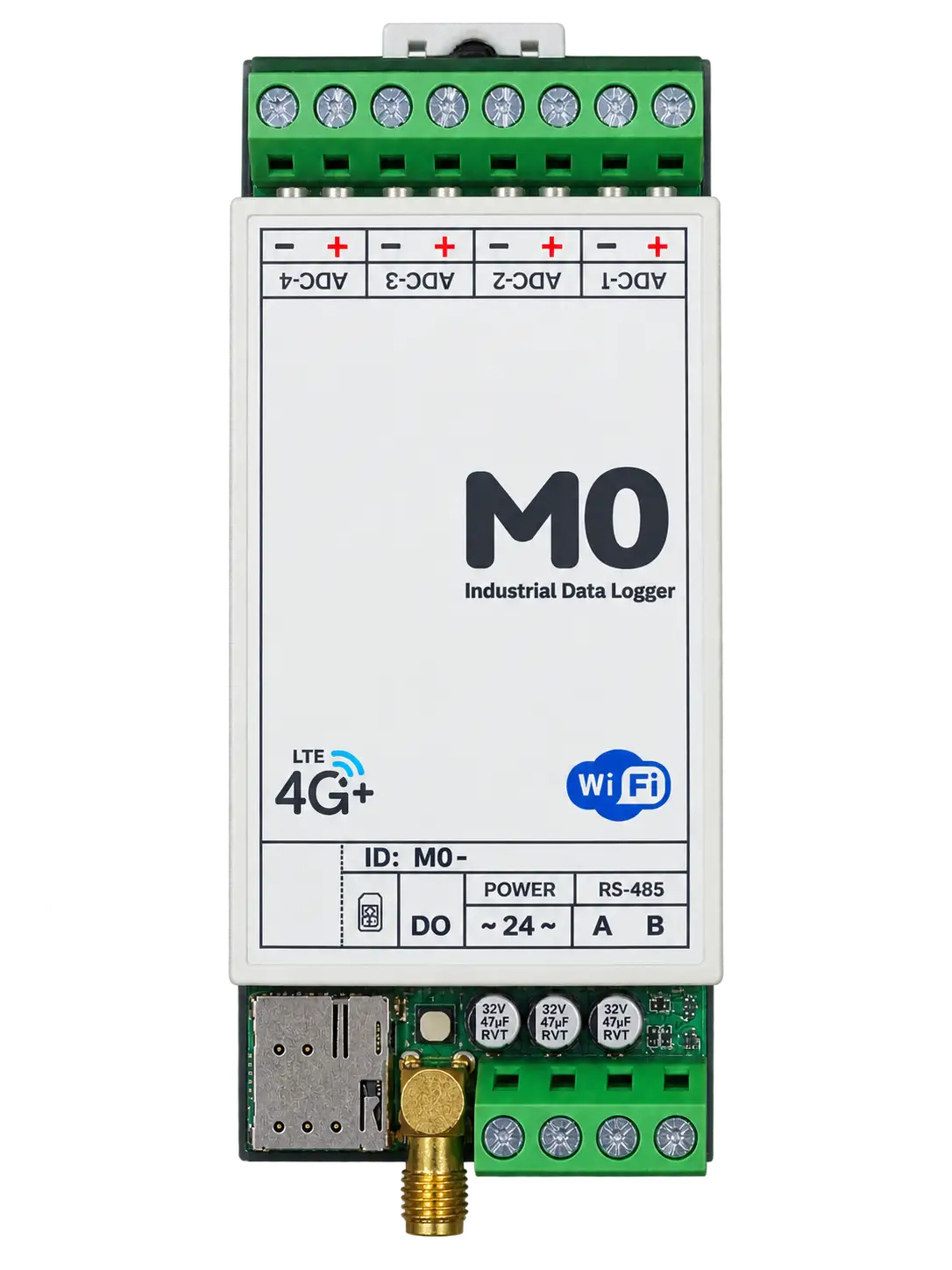

M0 4G front face with ADC, DO, power and RS-485 labelling
M0 4G analog input terminals and DIN rail clip
M2 industrial data logger held in hand
ALL-IN-ONE

M2

The all-in-one data logger. Twelve screw terminals of field I/O across one row, a labelled device ID on the face, and a wider enclosure that still drops onto standard rail.

Field I/O
12-way terminal
Serial
RS-485
Ports
2 × USB · LAN
Mounting
DIN rail clip
M2 twelve-way terminal block and label
M2 USB ports and RJ45
M2 held in hand for scale
EDGE COMPUTE

M5

A four-core computer with field I/O bolted to it. Run analytics, buffer weeks of history and drive relays locally, then hand the summary to Eco.

CPU / RAM
4 core · 1 GB (expandable)
Storage
64 GB (expandable)
Analog in
4 × 4-20 mA, 16 bit
Serial
2 × RS-485 · 2 × RS-232
Digital
2 × DI · 2 × relay (NO/NC)
Ports
4 × USB 2.0 · LAN · Wi-Fi
Power
9-36 V hybrid supply (DC/AC)
Download datasheet Ask for a quote
M5 industrial data logger, three-quarter view
M5 terminal layout and labelling
M5 Ethernet and USB port panel
M5 Serial industrial data logger held in hand
SERIAL DENSITY

M5 Serial

Eight serial channels on a single unit — Ch-0 to Ch-7, each with its own Tx, Rx and ground — for analyser rooms and instrument racks. One box instead of a shelf of converters.

Serial
8 channels, Ch-0 … Ch-7
Analog in
4 × ADC (A1-A4) + GND
Bus
RS-485 (A+ / B-)
Ports
LAN · USB · SIM slot
Network
Wi-Fi · optional 4G
Power
9-24 V AC/DC
Ask for a quote Datasheet coming soon

Every logger reports into Eco.

Power it up, register the device ID, and the readings appear on your dashboard.
